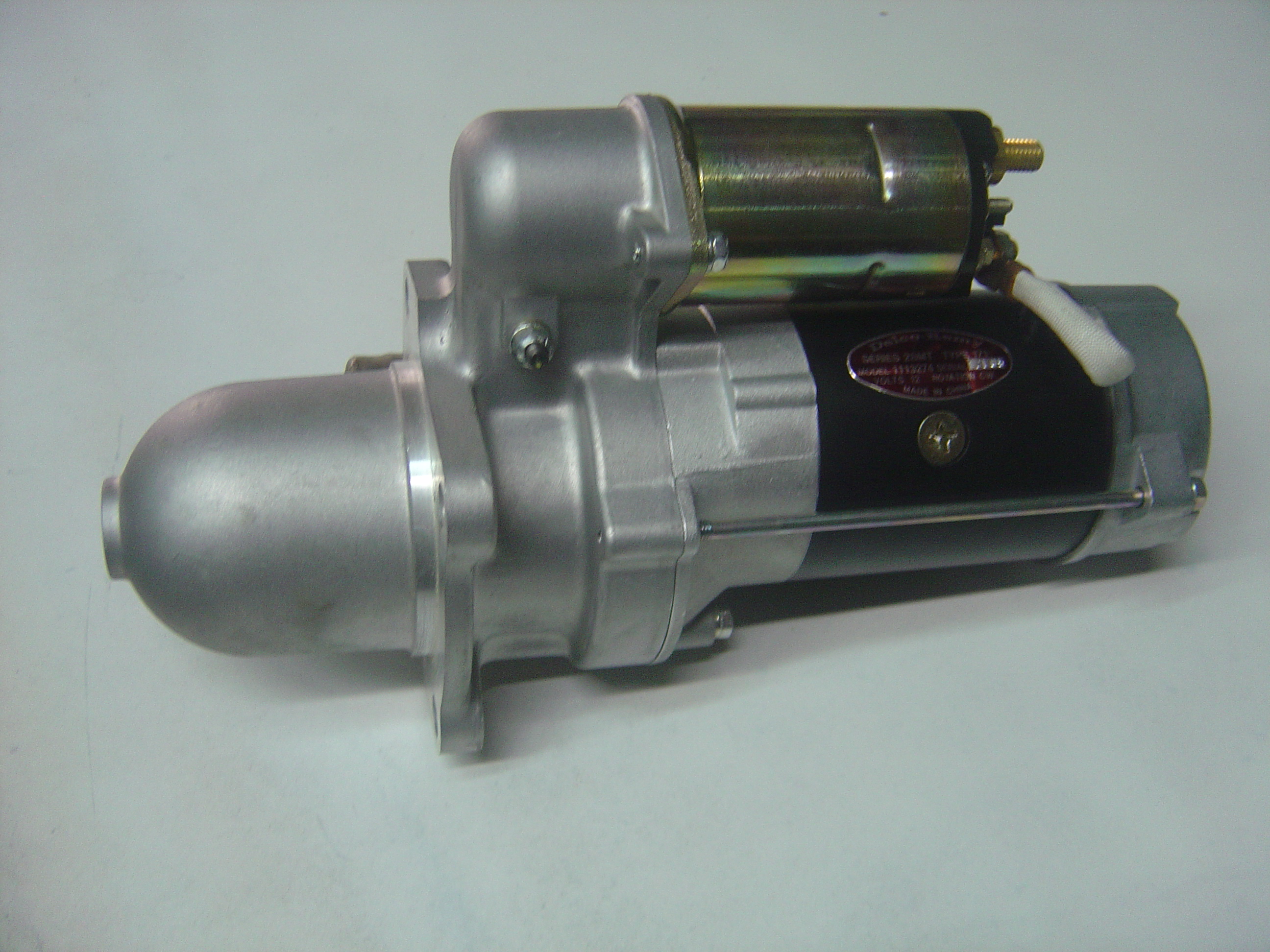

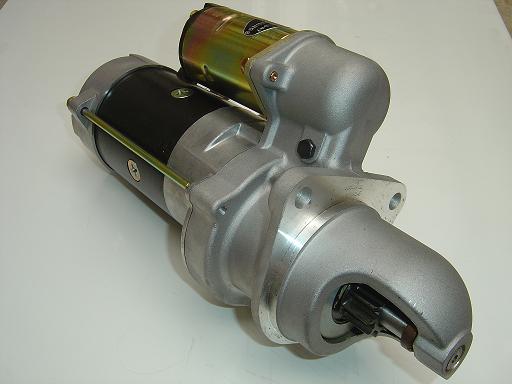

The 28MT is a gear reduction starter

Engine Type/Size: Diesel up to 6.5L / 397 cu in

System Voltage: 12 or 24 Volts

Rotation: Clockwise

Output: 4.0 or 2.9kW

Standard Mountings: SAE #1, SAE #3, Pad Mount

Standard Pinions:   10-Tooth/10-12 Pitch, 10-Tooth/8-10 Pitch, 12-Tooth/8-10 Pitch, 9-Tooth/Module 3

Weight: 18.5 lbs (8.4 kg)

Diameter: 3.5 in. (90mm)

Optional Jump Start Protection: Shield and solenoid cap available to meet SAE J1493 recommendations
Optional Wet Clutch Applications Available



Installation Instructions
